BIOGAS AND BIOMASS

Introduction:

Biogas and biomass plants are both forms of renewable energy that convert organic matter into energy. However, they use different types of organic matter and have different processes to produce energy

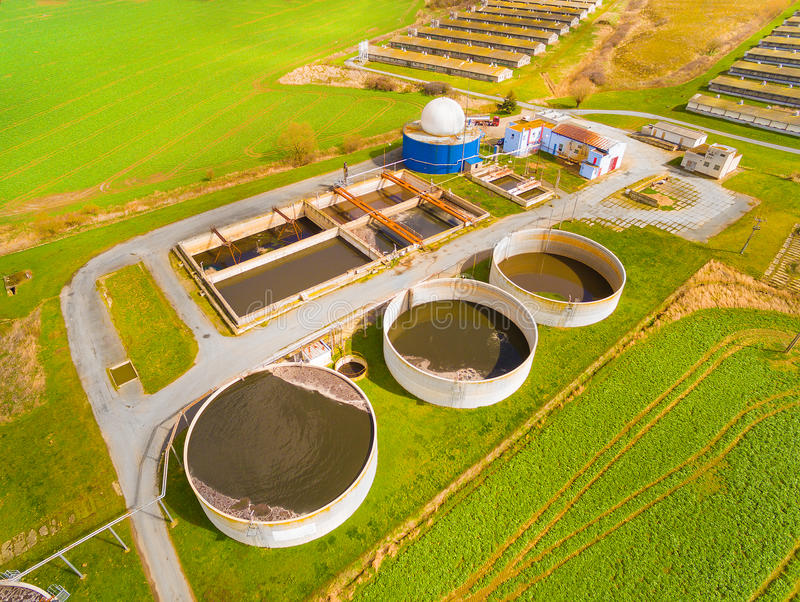

A biogas plant, converts organic waste materials, such as food waste, agricultural waste, and sewage, into methane (CH4) and carbon dioxide (CO2) through the process of anaerobic digestion. The mixture of methane and CO2 is known as biogas, which can be used as a fuel for heating, electricity generation, and transportation. Biogas plants also produce a nutrient-rich byproduct called digestate, which can be used as a fertilizer.

A biomass plant, on the other hand, converts organic matter, such as wood, agricultural residues, and energy crops, into energy through the process of combustion. The organic matter is burned in a boiler to produce heat, which is then used to generate electricity and steam. Biomass plants can also be used to produce liquid biofuels, such as bioethanol and biodiesel.

In summary, biogas plants convert organic waste materials into methane and CO2 through anaerobic digestion, while biomass plants convert organic matter into energy through combustion. The byproduct of biogas plant is a nutrient-rich fertilizer called digestate, while biomass plants don't have a specific byproduct, but the ash produced is used as a soil conditioner.

Biogas:

Biogas is a renewable energy source that has gained increasing attention in recent years due to its potential to reduce greenhouse gas emissions and improve energy security. The production of biogas is achieved through the anaerobic digestion of organic waste materials, such as food waste, agricultural waste, and sewage sludge. This process involves the use of microorganisms to break down the organic matter and produce biogas as a byproduct.

The biogas produced from the anaerobic digestion process is typically composed of approximately 60% methane (CH4) and 40% carbon dioxide (CO2), with trace amounts of other gases such as hydrogen sulfide (H2S), nitrogen (N2), and oxygen (O2). The composition of biogas can vary depending on the type of organic material being used and the process conditions.

The current technology for biogas production includes a variety of different anaerobic digestion systems, each with their own advantages and disadvantages. Some of the most common types of anaerobic digestion systems include:

1. Mesophilic digesters - These operate at temperatures between 30-40°C and are typically used for the digestion of organic waste materials with low to moderate solids content.

2. Thermophilic digesters - These operate at temperatures between 50-60°C and are typically used for the digestion of organic waste materials with high solids content, such as manure and agricultural waste.

3. Two-stage digesters - These systems use both mesophilic and thermophilic digestion stages to achieve greater biogas yields and more efficient digestion of organic waste materials.

4. Co-digestion systems - These systems involve the digestion of multiple organic waste streams, such as food waste and agricultural waste, to improve biogas yields and produce a more consistent quality of biogas.

5. Continuous stirred tank reactors (CSTRs) - These systems use a continuously mixed tank to achieve efficient biogas production and can be used for a range of organic waste materials.

Main types of anaerobic digestion:

There are several types of anaerobic digestion systems used for the production of biogas. Each system has its own advantages and disadvantages, and the choice of system depends on the type of feedstock, desired biogas yield, and other factors. Here are the main types of anaerobic digestion systems:

1. Continuous stirred tank reactor (CSTR): This is the most common type of anaerobic digestion system. It involves a continuously mixed tank where the feedstock is continuously added and removed. The system operates at a constant temperature, usually mesophilic (30-40°C) or thermophilic (50-60°C), and produces a steady supply of biogas. CSTRs are suitable for a wide range of feedstocks, including food waste, animal manure, and energy crops.

2. Batch reactors: Batch reactors are similar to CSTRs, but they are operated in batches rather than continuously. The feedstock is added to the reactor and left to digest for a certain period of time before it is removed and replaced with a new batch. Batch reactors are less expensive to build and operate than CSTRs, but they produce less biogas and are less efficient.

3. Plug flow reactors: Plug flow reactors are similar to CSTRs, but the feedstock moves through the reactor in a plug-like fashion. This allows for better mixing and more efficient digestion. Plug flow reactors are typically used for high-solids feedstocks, such as agricultural waste and sewage sludge.

4. Upflow anaerobic sludge blanket (UASB) reactors: UASB reactors are used for the treatment of high-strength organic wastewaters, such as industrial effluent. The reactor consists of a sludge bed, where the microorganisms responsible for anaerobic digestion are attached to a support media. The wastewater is added to the bottom of the reactor and flows upward through the sludge bed, where it is digested and biogas is produced.

5. Expanded granular sludge bed (EGSB) reactors: EGSB reactors are similar to UASB reactors, but they are designed to handle higher organic loading rates. The sludge bed in an EGSB reactor is expanded, which allows for more efficient digestion and greater biogas production.

6. Two-stage anaerobic digestion systems: Two-stage digestion systems involve two separate reactors, one operating at mesophilic temperature and the other at thermophilic temperature. The first reactor is used to break down the feedstock into smaller organic molecules, while the second reactor is used to produce biogas. Two-stage digestion systems are more efficient than single-stage systems, and they can handle a wider range of feedstocks.

In summary, there are several types of anaerobic digestion systems used for the production of biogas. The choice of system depends on the type of feedstock, desired biogas yield, and other factors. Continuous stirred tank reactors (CSTRs) are the most common type of anaerobic digestion system, but other types, such as batch reactors, plug flow reactors, upflow anaerobic sludge blanket (UASB) reactors, expanded granular sludge bed (EGSB) reactors, and two-stage systems, are also used depending on the application.

Biogas purification:

Biogas typically contains impurities, such as water, carbon dioxide, hydrogen sulfide, and trace amounts of other gases, that must be removed before the gas can be used as a fuel. Biogas purification and upgrading technologies are used to remove these impurities and increase the quality and energy content of the biogas.

There are several biogas purification and upgrading technologies available, including:

1. Water scrubbing: Water scrubbing is the most common method for removing carbon dioxide and hydrogen sulfide from biogas. In this process, the biogas is passed through a column of water, which absorbs the carbon dioxide and hydrogen sulfide. The purified biogas is then dried and compressed for use as a fuel.

2. Pressure swing adsorption (PSA): PSA is a technology that uses adsorbent materials to separate gases based on their physical and chemical properties. In this process, the biogas is passed through a bed of adsorbent material, such as activated carbon, which adsorbs the impurities. The purified biogas is then released from the adsorbent material and collected for use as a fuel.

3. Membrane separation: Membrane separation is a technology that uses permeable membranes to separate gases based on their molecular size and weight. In this process, the biogas is passed through a series of membranes, which allow the smaller molecules, such as methane, to pass through while blocking the larger molecules, such as carbon dioxide and nitrogen. The purified biogas is then collected for use as a fuel.

4. Cryogenic separation: Cryogenic separation is a technology that uses low temperatures to separate gases based on their boiling points. In this process, the biogas is cooled to a very low temperature, causing the impurities to condense and separate from the purified biogas. The purified biogas is then collected and warmed to ambient temperature for use as a fuel.

5. Chemical absorption: Chemical absorption is a technology that uses chemical solvents to selectively remove impurities from biogas. In this process, the biogas is passed through a column containing a chemical solvent, such as amines, which reacts with the impurities and removes them from the biogas. The purified biogas is then collected and compressed for use as a fuel.

In addition to these purification technologies, biogas can also be upgraded to biomethane, a high-quality fuel that can be used in natural gas pipelines and for transportation. Biomethane is produced through a process called biogas upgrading, which involves removing the carbon dioxide and other impurities from biogas to increase its methane content.

Biogas upgrading can be done using several technologies, including water scrubbing, PSA, membrane separation, and cryogenic separation. The purified biogas is then compressed and injected into natural gas pipelines for use as a fuel. Biomethane can also be used to fuel vehicles, such as buses and trucks, that are equipped with compressed natural gas (CNG) or liquefied natural gas (LNG) engines.

In summary, biogas purification and upgrading technologies are used to remove impurities from biogas and increase its quality and energy content. These technologies include water scrubbing, pressure swing adsorption (PSA), membrane separation, cryogenic separation, and chemical absorption. Biogas can also be upgraded to biomethane, a high-quality fuel that can be used in natural gas pipelines and for transportation.

Applications:

Biogas has a wide range of applications, including:

1. Electricity generation: Biogas can be used to generate electricity using a gas engine or turbine. The electricity can be used on-site or sold to the grid.

2. Heat generation: Biogas can be used to generate heat for industrial processes, such as drying and pasteurization.

3. Cooking and heating: Biogas can be used as a cooking and heating fuel for households and small businesses.

4. Transportation: Biogas can be upgraded to biomethane and used as a transportation fuel for vehicles equipped with compressed natural gas (CNG) or liquefied natural gas (LNG) engines.

5. Agriculture: Biogas can be used as a fertilizer and soil conditioner in agriculture, improving soil health and crop yields.

6. Waste management: Biogas can be produced from organic waste, such as food waste and agricultural waste, reducing the amount of waste sent to landfills and lowering greenhouse gas emissions.

7. Water treatment: Biogas can be used to treat wastewater and sludge, reducing the environmental impact of wastewater treatment and generating energy.

8. Cogeneration: Biogas can be used in a combined heat and power (CHP) system, generating both electricity and heat for on-site use.

Biomass:

Biomass, is a renewable energy source that is produced from organic matter, such as wood, agricultural residues, and energy crops. Biomass can be used to produce electricity, heat, and liquid biofuels, such as bioethanol and biodiesel.

The process of producing energy from biomass typically involves the combustion of the organic matter in a boiler to produce steam, which is then used to generate electricity and heat. Biomass can also be converted into biofuels through various processes, such as gasification and fermentation.

The process of converting biomass into energy involves several steps, including:

1. Collection and transportation: The first step in the process is to collect and transport the biomass to the processing facility. This may involve harvesting crops, logging forests, or collecting waste materials.

2. Preparation: Once the biomass has been collected, it needs to be prepared for processing. This may involve grinding, chipping, or shredding the biomass to a size that is suitable for the conversion process.

3. Conversion: There are several methods for converting biomass into energy, including combustion, gasification, pyrolysis, anaerobic digestion, and fermentation. The method used depends on the type of biomass and the desired end product.

4. Energy production: The energy produced from the conversion process can be used for electricity generation, heat production, or the production of biofuels. The energy can be used on-site or sold to the grid.

5. Waste management: The leftover material from the conversion process, known as biomass residue or byproducts, can be used for other purposes, such as fertilizer or animal feed. Alternatively, it may need to be disposed of in an environmentally responsible manner.

The specific process used for biomass conversion depends on several factors, including the type of biomass, the desired end product, and the available technology. For example, combustion is a common method for producing electricity from wood chips and other solid biomass, while anaerobic digestion is often used to produce biogas from organic waste.

In recent years, advancements in biomass processing technology have led to improvements in efficiency, cost-effectiveness, and environmental impact. For example, gasification technology has enabled the production of cleaner-burning syngas from biomass, while pyrolysis technology has enabled the production of bio-oil and other valuable products from biomass.

Biomass processing is a complex and evolving field that offers a promising source of renewable energy and a means of reducing greenhouse gas emissions.

Current tech methods of biomass:

Biomass technology has come a long way in recent years, with advancements in the efficiency, cost-effectiveness, and environmental impact of biomass energy systems. Some of the current technologies used in biomass processing include:

1. Direct combustion: This is the most common technology used in biomass energy systems. In this process, biomass is burned directly to produce steam, which is then used to generate electricity or heat.

2. Gasification: Gasification is a process that converts solid biomass into a gas, which can be used for heat, electricity, or fuel. This process is more efficient than direct combustion and produces fewer emissions.

3. Pyrolysis: Pyrolysis is a process that heats biomass in the absence of oxygen to produce bio-oil, gas, and char. The bio-oil can be used for heat or fuel, while the gas and char can be used for electricity production or as a soil amendment.

4. Anaerobic digestion: Anaerobic digestion is a process that breaks down organic matter, such as food waste, into biogas, which can be used for heat or electricity. This process is commonly used in waste-to-energy systems.

5. Torrefaction: Torrefaction is a process that involves heating biomass to a high temperature in the absence of oxygen, which makes it more energy-dense and easier to transport.

6. Co-firing: Co-firing involves using biomass as a supplemental fuel in coal-fired power plants, which can reduce greenhouse gas emissions and increase the sustainability of the energy system.

7. Integrated biorefineries: Integrated biorefineries are facilities that process biomass into a range of products, such as biofuels, chemicals, and materials. These facilities are designed to be more efficient and sustainable than traditional refineries.

In addition to these technologies, there are ongoing research and development efforts aimed at improving the efficiency and sustainability of biomass processing. For example, researchers are working on developing new types of biomass feedstocks, improving the efficiency of conversion processes, and reducing the environmental impact of biomass energy systems.

Applications:

Biomass has a wide range of applications in various industries and sectors. Some of the most common applications of biomass include:

1. Electricity production: Biomass can be burned to produce steam, which is then used to generate electricity. This is a common application of biomass in the energy sector.

2. Heat production: Biomass can be burned to produce heat for buildings or industrial processes. This is a common application of biomass in the heating and cooling sector.

3. Transportation fuels: Biomass can be converted into liquid fuels, such as biofuels, which can be used to power vehicles. This is a growing application of biomass in the transportation sector.

4. Chemicals and materials: Biomass can be processed into chemicals and materials, such as bioplastics and biocomposites, which can be used in various industries, including packaging, construction, and automotive.

5. Agriculture and forestry: Biomass can be used as a soil amendment, providing nutrients and improving soil quality. It can also be used as a feedstock for livestock or as a source of forestry products.

6. Waste management: Biomass can be used to process waste materials, such as food waste and sewage sludge, into biogas or biofertilizer.

7. Carbon sequestration: Biomass can be used as a tool for carbon sequestration, as it absorbs carbon dioxide from the atmosphere during growth.

Overall, biomass has a wide range of applications and is becoming an increasingly important part of the sustainable energy mix.
