Micro Reactor and Small Modulator Nuclear Reactor



Micro Reactor:

A micro reactor is a compact and small-scale nuclear reactor designed to generate a relatively low amount of electricity, typically in the range of a few megawatts or less. These reactors are characterized by their small size, modular design, and potential for deployment in remote or off-grid locations.

Construction: Micro reactors are designed to be compact and self-contained units. They are typically constructed in a factory setting, allowing for standardized production and quality control. The construction process involves assembling the reactor core, coolant systems, control mechanisms, and power conversion systems into a single integrated unit. The components are designed to be modular, making it easier to transport and install the micro reactor at the desired location. The compact size and modular construction enable faster construction times and reduced costs compared to larger reactors.

Working: Micro reactors operate on the principle of nuclear fission. They use a nuclear fuel, such as enriched uranium or other fissile materials, housed within the reactor core. The nuclear fuel undergoes controlled fission reactions, where the nucleus of an atom is split into two smaller nuclei, releasing a significant amount of energy in the form of heat. This heat is transferred to a coolant, such as water, gas, or liquid metal, which flows through the reactor core. The heated coolant then carries the thermal energy to a power conversion system, such as a steam turbine or thermoelectric generator, which converts the heat into electricity.

The compact size of micro reactors allows for efficient heat transfer and quick response times. They are designed to be inherently safe, with passive cooling systems and automatic shutdown mechanisms. Some micro reactor designs utilize advanced fuels, such as high-temperature gas-cooled reactors (HTGRs) or molten salt reactors (MSRs), which offer enhanced safety and efficiency characteristics.

Advancements:

1. Compact Design: Micro reactors are designed to be significantly smaller in size compared to traditional nuclear reactors. Advancements in design and engineering have allowed for the compact arrangement of reactor components, including the fuel assembly, coolant systems, and power conversion units.

2. Modular Construction: The modular design of micro reactors enables factory fabrication and simplified on-site assembly. This approach allows for standardized production, quality control, and cost-effective deployment. The modular nature also enables scalability, with the ability to add additional modules to increase power output as needed.

3. Enhanced Safety Features: Micro reactors incorporate advanced safety features to ensure their safe operation. These features include passive cooling systems that rely on natural convection or gravity-driven processes, inherent shutdown mechanisms, and robust containment structures. These advancements aim to enhance safety and prevent accidents.

New Proposal Ideas:

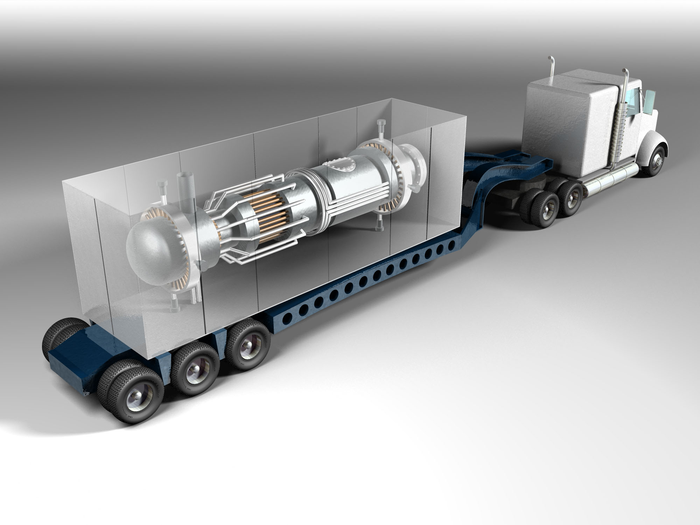

1. Portable Micro Reactors: Some proposals suggest developing micro reactors that are portable and can be easily transported to remote or off-grid locations. These reactors can provide power for military operations, disaster relief efforts, or remote mining and exploration sites.

2. Hybrid Micro Reactors: Hybrid micro reactors combine nuclear and renewable energy technologies. They integrate a small nuclear reactor with renewable energy sources such as solar or wind power. This combination provides a reliable and continuous power supply, even in areas with intermittent renewable energy resources.

3. Micro Reactors for Heat Generation: Besides electricity generation, there are proposals to use micro reactors specifically for heat generation. This heat can be used for district heating systems, industrial processes, or desalination plants, offering a versatile application of micro reactors beyond electricity production.

Small Modular Reactor (SMR):

A small modular reactor (SMR) is a type of nuclear reactor that is designed to be smaller in size and output compared to traditional large-scale reactors. SMRs are typically built as modular units that can be manufactured in factories and then transported to the site for installation. They offer a flexible and scalable approach to nuclear power generation.

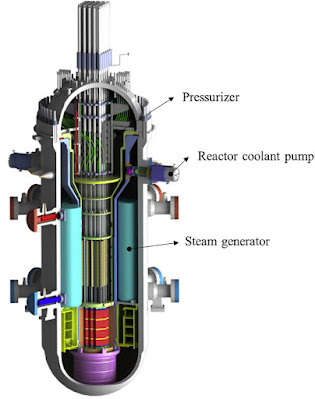

Construction: Small modular reactors (SMRs) are constructed using a modular approach. The design involves fabricating smaller reactor units, or modules, in a factory setting. These modules include the nuclear reactor core, coolant systems, control mechanisms, and power conversion systems. The modular design allows for standardized production and quality control. Once the modules are manufactured, they can be transported to the desired location and assembled on-site. The modular construction enables flexibility in capacity planning, as additional modules can be added as needed to increase the power output.

Working: SMRs operate on the same basic principles as larger nuclear reactors. They use nuclear fission to generate heat, which is then converted into electricity. SMRs can utilize various coolant systems, such as pressurized water, gas (such as helium), or liquid metal (such as sodium or lead-bismuth). The coolant absorbs the heat produced by the nuclear fission reactions within the reactor core. The heated coolant is then circulated to a heat exchanger, where it transfers its thermal energy to a secondary coolant loop. In the secondary loop, the heat is used to generate steam, which drives a turbine connected to a generator, producing electricity.

SMRs can employ different types of fuels, including enriched uranium, mixed oxide (MOX) fuel, or even thorium-based fuels. The flexibility of SMRs allows for customization to meet specific energy needs, whether it be for electricity generation, district heating, or other industrial applications.

Safety features are integral to SMR designs. They include passive cooling systems that rely on natural convection or gravity-driven processes, inherent shutdown mechanisms that rely on physics rather than external systems, and robust containment structures to prevent the release of radioactive material in case of an accident.

Advancements:

1. Standardized Designs: SMRs utilize standardized designs that can be mass-produced, resulting in cost savings and improved quality control. Standardization allows for faster licensing, construction, and deployment of SMRs.

2. Advanced Fuel Technologies: SMRs can employ advanced fuel technologies, such as high-assay low-enriched uranium (HALEU) or mixed oxide (MOX) fuel. These advanced fuels can improve fuel efficiency, reduce waste generation, and enhance safety characteristics.

3. Passive Safety Systems: SMRs incorporate passive safety systems that rely on natural processes, such as gravity and convection, to maintain safety and cool the reactor in case of abnormal events or accidents. These systems do not require active human intervention or external power supply, enhancing the overall safety of SMRs.

New Proposal Ideas:

1. Floating SMRs: There are proposals to develop small modular reactors that can be installed on floating platforms or barges. These floating SMRs can be deployed near coastal areas or remote regions, providing power for coastal cities, offshore oil and gas operations, or desalination plants.

2. Remote Communities and Microgrids: SMRs can be utilized to provide reliable and sustainable power to remote communities and microgrids. By replacing diesel generators or unreliable power sources, SMRs can improve energy access and reduce greenhouse gas emissions in such areas.

3. Nuclear-Hydrogen Integration: Some proposals suggest integrating SMRs with hydrogen production facilities. The excess heat generated by the SMRs can be used for hydrogen production through processes like high-temperature electrolysis or thermochemical water splitting. This integration supports the production of clean hydrogen as an energy carrier for various applications.

In conclusion, micro reactors and small modular reactors are advancing the field of nuclear energy by offering compact, flexible, and safer options for power generation. The advancements and new proposal ideas in these areas aim to improve efficiency, enhance safety, and expand the applications of nuclear energy to address evolving energy needs and sustainability goals.
